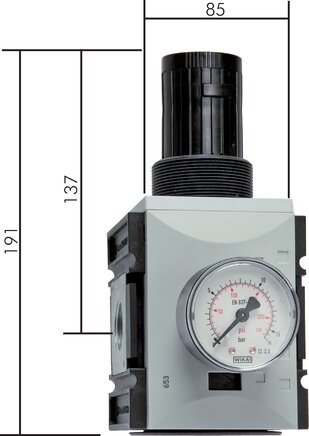

1" Pressure Regulator with Gauge

Version:

Self-relieving pressure regulator

Materials:

Body: PA 66 GF60, spring hood: POM, diaphragms and seals: NBR

Temperature range:

-10 to +50 °C

Input pressure:

Max. 16 bar (model series 0: max 12 bar)

Pressure gauge connection:

G 1/4" (model series 0: G 1/8")

Media:

Oiled and unoiled compressed air, neutral gasses

Advantages:

•Automatic venting in the event of overpressure on the secondary side,
•Easy assembly of individual components using coupling kits within a model series,
•Hand wheel can be locked by pressing down on it and bolted with a lock - please use VHS 20. Model series 0 cannot be locked.

Switch panel thread:

M 50x1,5

Scope of delivery:

Pressure regulator incl. 50 mm pressure gauge

Flow:

14200 l/min, secondary relieving: 120 l/min

Own air consumption:

Max. 1,5 l/min

ATEX:

Operating material without its own potential source of ignition in accordance with Directive 2014/34/EU

Optional:

Safety version:with upstream lockable ball valve and filler valve -Si
